Automated Ultrasonic Systems
ScanMaster a World leading supplier of Automated Ultrasonic Inspection Systems serving a wide range of industries to ensure quality and improve productivity. Advanced Solutions for the Ultrasonic Inspection World.
Products Page Button ScanMaster Ultrasonic Inspection Solutions Applications

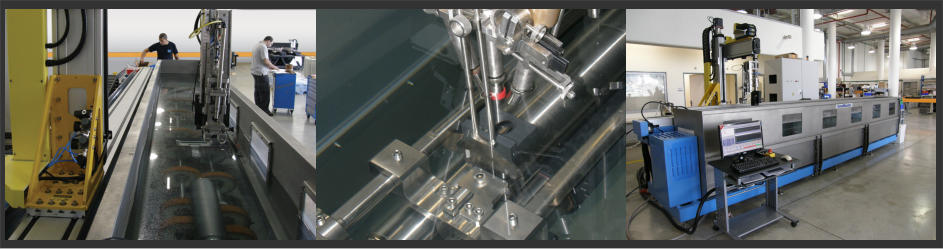

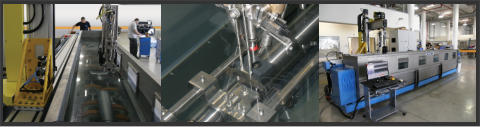

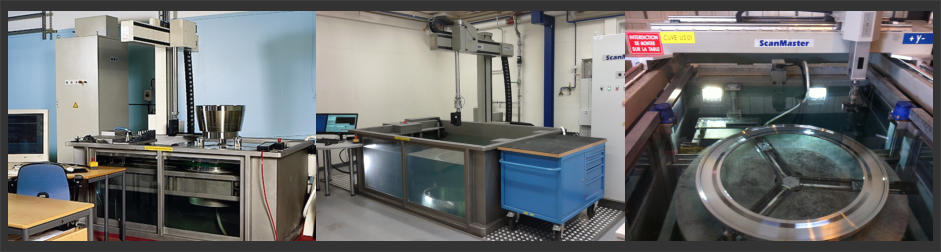

Standard Immersion Systems ScanMaster ultrasonic immersion systems are designed for high throughput, multi shift operation in an industrial or lab environment. These fully integrated systems provide various scanning configurations and incorporate conventional and phased arrays technologies to support diverse applications, such as inspection of disks, bars, shafts, billets and plates. All of ScanMaster immersion systems are built from high accuracy scanning frames allowing for scanning of complex parts and include a multi- channel ultrasonic instrument with exceptional performance. The systems are approved by all major manufacturers for C-scan inspection of jet engine forged discs. Together with a comprehensive set of software modules these flexible series of systems provide the customer with the best price performance solutions.
ScanMaster Ultrasonic Immersion Systems
Features and Benefits • Wide variety of different size modular systems • Powerful teach-in and scanning software allowing for inspection of complex 3D parts. • Off-line part programming by importing the part model from CAD file • A, B and C-scan data processing and analysis tool kit. Includes a reach library of tools for analysis and evaluation of scan results • 1000 Gates, advanced algorithm for automatic evaluation of jet engine discs scan results • Comprehensive inspection report, standard and customized versions • High-resolution, gimbal-gimbal probe manipulator with protective electro-mechanical breakaway, which prevents damage to manipulator, transducers and part under inspection in case of collision • High-performance turntable with self-centering chucks • Automation of major functions provides time savings and prevents operator errors Options • Continuous motion or two-position motorized lifting device for easy loading and unloading Motorized chucking for quick part clamping • Application-tailored multi-transducer probe holder • Interface to loading/unloading industrial robot for fully automated inspection • Transportable version with quick installation and ready for operation (SKAN200,   SKAN500 Series)

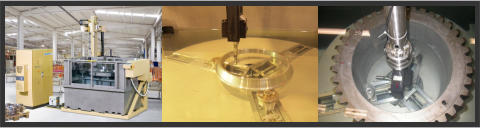

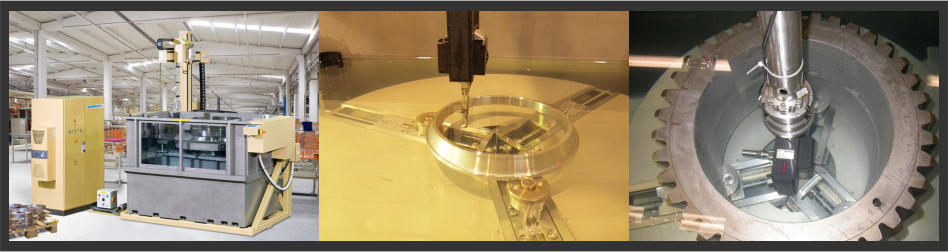

Bearing Inspection ScanMaster has enhanced and adapted its line of immersion scanners to meet the stringent inspection requirements set by the bearing industry. ScanMaster immersion scanners service the full range of industrial bearing rings, from those used in high-speed trains to those integrated in windmills. These fully integrated, high throughput automated inspection systems provide the best bearing inspection solution, both performance- and productivity-wise.
ScanMaster Ultrasonic Bearing Inspection
Features and Benefits • Rugged immersion tanks with high-precision mechanics • Chucking and centering of the rings • Fast two-position lifting device (operated from the HMI screen) for easy loading and unloading of bearings•Motorized turntable chucks for automated • Provision for interfacing with a loading-unloading robot • Multi-transducer probe holder for increased inspection throughput • Fully automated inspection process requiring no operator intervention maximizes efficiency and helps prevent operator errors • Efficient "Teach-In" function for programming of spherical and ball bearings • Off-line part programming through importing part models from CAD files • A, B, and C-scan data analysis tool kit, including a tool library for analysis and evaluation of scan results • 3D display of bearing model and scanning robot • Comprehensive inspection reports with standard and customized versions
Billets and Bars Inspection Systems ScanMaster offers a variety of immersion scanners for inspection of round and square bars and billets, as well as tubes and shafts intended for use in aerospace, steel and other industries. Both conventional and phased array transducers are incorporated in such scanners. System configuration is depending on the geometry and size of products to be inspected, as well as on the applicable standards and specifications of requirements. Custom design assures full system compliance with specific geometrical parameters and inspection requirements.
ScanMaster Billets & Bars Ultrasonic Inspection Systems
Features and Benefits • Modular configuration, both hardware- and software-wise • Adherence to major aerospace and steel standards: AMS 2628, P3TF31, DMC 0022, SIM-16, RPS 707, ASTM E-588, SEP 1927 and others • Rugged immersion tanks with high-precision mechanics and integrated water circulation system • Universal inspection head permits multi-zone or conventional inspection, as applicable • Customized multi-transducer holder for simultaneous inspection using longitudinal and shear waves • Quick exchange between phased arrays and conventional transducers • Mechanical surface follower • Multi-channel programmable ultrasonic instrument with exceptional performance • Helical (spiral) scan mode used for inspection of round bars and billets significantly increases inspection throughput • A, B and C-scan data processing and analysis tool kit. Includes a reach library of tools for analysis and evaluation of scan results • Comprehensive inspection report, standard and customized versions in accordance with applicable aerospace and steel standards: ASTM E- 588, SEP 1927 and others • Automation of major functions provides time savings and prevents operator errors
Plate Inspection Rolled aluminium and titanium plates intended for aerospace applications are inspected in accordance with stringent industry standards. The large size of the plates and their wide thickness range demand high inspection productivity. Defect evaluation and comprehensive inspection reports are common requirements. ScanMaster offers a variety of field proven, high throughput plate inspection systems designed to provide a complete solution for material testing and handling. ScanMaster systems use either phased array or conventional transducers for defect detection, and include advanced features for plate scanning, data acquisition, defect evaluation and reporting.
ScanMaster Ultrasonic Plate Inspection Systems
Features and Benefits • ‘One stop shop’ providing fully integrated, high throughput automated inspection systems. • To provide a comprehensive inspection solution, systems may include material handling devices such as lifting platforms and rolling tables in addition to the immersion tank and scanning robot. • Full communication with plant computer for material handling, transfer of material information and test requirements, and handover of inspection results. • Advanced, unique features assure accurate scanning, reliable data acquisition and automated defect evaluation, as well as high inspection throughput. • Automated DAC calibration to reduce pre-scanning time. • Non-contact surface tracking to ensure perpendicularity of the ultrasonic beam on the plate surface. • Automated defect evaluation procedure complying with applicable standards. • Compliance with major standards, such as AMS STD 2154, ASTM B 594, ASTM E 2375, BSS 7055 and ABP-6-5232
Customized Systems In addition to its extensive range of standard immersion systems, ScanMaster provides customized inspection solutions to meet customer's specific requirements. Such systems are specially designed by our in-house engineering team and are integrated with ScanMaster core modules (digital ultrasonic instrumentation, production-oriented software packages and servo motion control hardware) to provide a fully integrated solution tailored to the customer's needs. Customized systems utilize conventional or phased array ultrasonic techniques to provide immersion or squirter inspection. Additional modules such as turntables, bar-rotator, yokes, and other standard or specially designed accessories may also be integrated.
ScanMaster Customized Ultrasonic Inspection Systems
Features and Benefits • Customized architecture to match parts geometry and inspection requirements • Specifically tailored robust and precise mechanics • Phased array or multi-channel conventional scanning technology • Supply or integration of material handling devices, such as industrial robots •Implementation of industry proven software tools

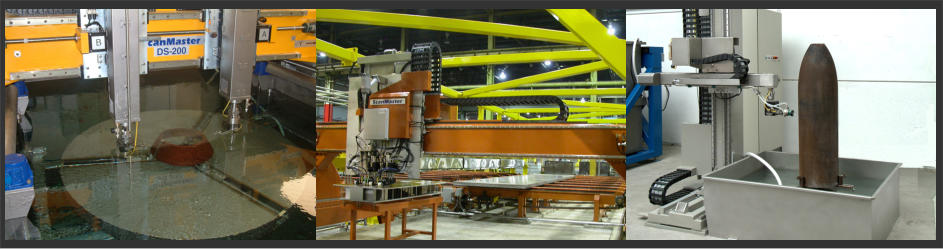

Squirter based Inspection systems The extensive use of composite materials in manufacturing of aerospace and naval parts and structures is dictating an increasing need for adequate, reliable, high throughput inspection systems. Structural parts can be scanned using various configurations of squirter systems, in both pulse-echo and thru-transmission modes. ScanMaster offers all possible scanning configurations, including overhead gantry with travelling bridges, dual scanning towers, flatbed scanners, and systems based on industrial robots. ScanMaster squirter systems are designed to inspect a wide range of aerospace structures, from flat panels to complex curvature parts. Both conventional, high penetration UT and phased array technologies are available.
ScanMaster Ultrasonic Squirter based Inspection Systems

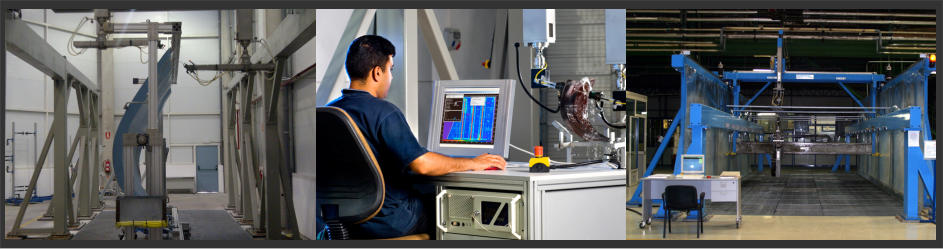

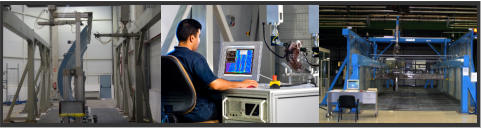

Supported Scanner Configurations Travelling bridge type scanners are suitable for inspection of single curvature parts (one bridge systems) or double curvature parts (two bridge systems). This configuration requires minimal floor space and permits use of a turntable for high throughput inspection of round structures. A removable immersion tank can be provided as required. Dual tower scanners are appropriate for scanning complex double curvature parts. A removable immersion tank can also be provided in this configuration. Flatbed systems are used for inspection of flat parts or parts of moderate curvature. These scanners are usually equipped with multiple squirters for productivity enhancement. Parts of complex shape can also be inspected by squirter systems using industrial robots. Features and Benefits • Fully integrated systems: All system components are designed, manufactured and tested by ScanMaster, ensuring smooth, reliable operation of the system as a whole • Scanning speeds of up to 1,000 mm/second •Simultaneous inspection in through transmission and pulse echo modes • Simultaneous inspection with linear and logarithmic amplifiers • Dual squirter, dual frequency features for high throughput • Easy part programming through intuitive Teach In tools, including import of CAD files such as CATIA • Advanced image analysis and processing tools • Adherence to Airbus and Boeing requirements • Packaged water systems with active flaw control, including storage, filtration and UV treatment • Optional turntable and part fixtures • Optional removable immersion tank (gantry and dual tower configurations)

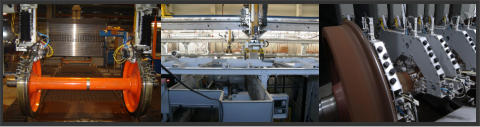

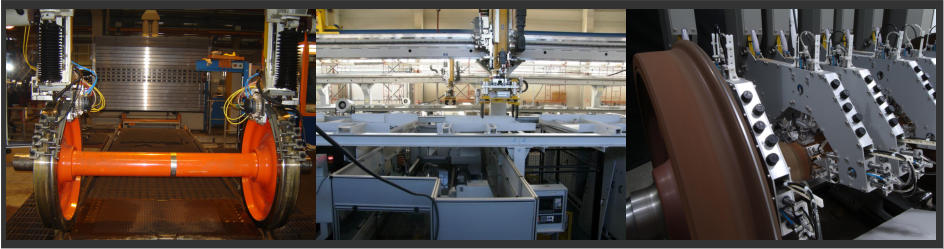

Axles and Wheels Inspection As stringent regulations are imposed on train wheel and axle inspection in both the manufacturing and service sectors, the industry requires automated inspections that provide efficiency, quality, repeatability, and documentation of test results. ScanMaster offers a wide range of automated inspection systems for testing of wheels, axles and wheel-set assemblies in both production lines and refurbishing shops. The AS-220w Series Wheel Inspector includes fully computerized ultrasonic systems for inspection of train wheels suited for production line or refurbishment shop. The AS-220a is ScanMaster's series for axle inspection in production line and refurbishment shop environments. This series provides full automation of the inspection process in a cost effective manner.
ScanMaster Ultrasonic Axles and Wheels Inspection Systems
Features and Benefits • Phased-array UT, conventional UT or a combination of both technologies • High throughput, multi-shift operation in industrial environments • Simple to use, single-screen operator control console • Advanced analysis tools with projection views and suppression of falls indications • Detailed test result documentation for reporting and archiving

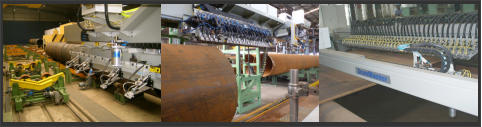

Spiral SAW Inspection Systems The AS-200S Systems are designed to inspect Spiral Submerged Arc Welded (H-SAW) Pipes, including the strip, weld, pipe body and Heat Affected Zone (HAZ). The systems may be integrated as strip inspection, online inspection right after the welding process and offline inspection as a final pipe test, and can be set up using a variety of ultrasonic configurations, according to the specific inspection requirements. Both static and moving inspection head configurations are available for the offline pipes inspection, to accommodate different site conditions and throughput requirements.
ScanMaster Ultrasonic Spiral SAW Inspection Systems
Adherence to common industry standards: •API 5L/ISO 3183 •Shell DEP-31.40.20.37-Gen. •Chevron •other pipeline requirements Features and Benefits • Modular inspection heads supporting different ultrasonic configurations • Ability to inspect 100% of the body pipe after pipe forming • Pipe end inspection modules • Compact system design for efficient integration into existing lines • Automated seam tracking using laser • Ease of operation for quick setup and calibration • On-site operator console • Automated custom tailored inspection report for endless and cut pipes • Robust  - vibration free mechanical structure • Unique ultrasonic transducers with internal coupling verification • RFI shielding and ultrasonic instrument layout specifically designed for enhanced SNR • Low maintenance and long lifespan
ERW Inspection Systems The AS-200E System inspects Electro Resistance Welded Pipe (ERW), including weld, body and Heat Affected Zone (HAZ). The system may be integrated for online or offline inspection, and can be set up using a variety of ultrasonic configurations, according to inspection requirements and site conditions. Both static and moving inspection head configurations are available to accommodate different site conditions and throughput requirements. Full body inspection systems for detection of delaminations in the pipe body are also available for off-line inspection with different pipe conveying configurations.
ScanMaster Ultrasonic ERW Inspection Systems
Features and Benefits • Stationary or moving inspection heads supporting different ultrasonic configurations • Measurement of wall thickness in the HAZ and on the weld • Integration with pilot line trackers • Body inspection available for either longitudinal or transverse pipe transport configuration • Ease of operation for quick setup and calibration • On-site operator console • Automated custom tailored inspection report • Robust  - vibration free mechanical structure • Low maintenance and long lifespan

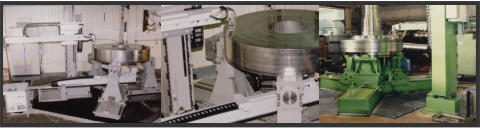

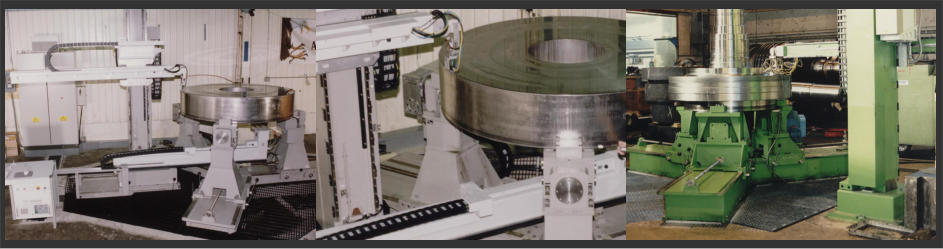

Large Forgings ScanMaster supplies efficient and reliable ultrasonic inspection systems for large, rotary-symmetrical forgings and castings, such as forged compressor and turbine disks used in stationary gas turbines for electric power production. Highly functional and rugged mechanics include a unique servo-driven part rotating platform that enables access to all surfaces and vertical chucking of parts. The specially designed manipulators mounted on a robotic arm can accommodate a large number of transducers, allowing for enhanced inspection coverage and shorter inspection times. The systems can be supplied with phased-array UT, conventional UT or a combination of both technologies, according to customer and standard requirements.
ScanMaster Large Forgings Ultrasonic Inspection Systems
ScanMaster spotweld inspector highlights • Easy to use equipment with intuitive menus • Virtually unlimited number of inspection set-ups to cover the whole variety of parts to be inspected • Automatic GO/NO-GO decision making • Automatic classification of spot weld, based on advanced algorithms developed for a good correlation with the results of tear-down testing • Real time feedback to operator for probe normality and positioning • On-screen messages for operator guidance during testing • Automatic generation of inspection reports, with the option of customization • Built-in network connectivity • Data management option for integration into factory host for statistical process analysis Advantages and benefits of using ScanMaster spotweld inspector: • Reduction of inspection time • Manpower savings • Prevention of inventory loss, as caused by destructive (chisel and hammer and tear-down) testing • Prevention of potential manpower injuries induced by the methods above • Near real time feedback to the production process • High reliability, smooth operation 7/24

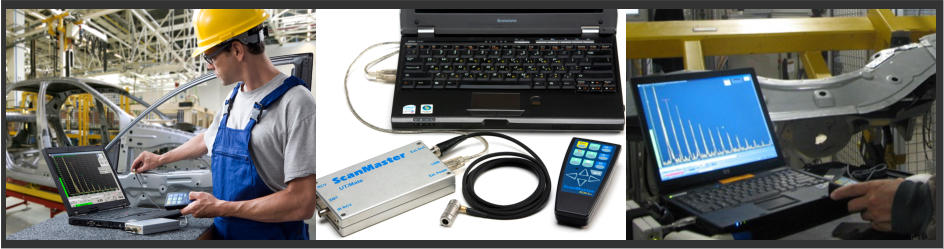

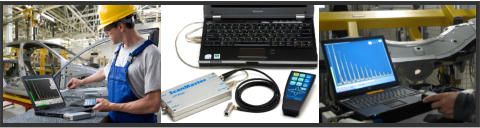

SpotWeld Inspection Developed in close cooperation with the automotive industry, ScanMaster spot weld ultrasonic inspector has set new standards in the field, significantly reducing inspection time while delivering a quick return on investment. Hundreds of ScanMaster spotweld inspection instruments are nowadays used by the car manufacturers, whose feedback is a valuable source for permanent improvement of equipment performance. In light of ScanMaster’s experience and expertise in the field, concrete data on real-life savings, as well as calculation of return on investment can be made available upon request.
ScanMaster Ultrasonic SpotWeld Inspection Systems
Features and Benefits • Fully integrated systems, including highly reliable low noise motion control, multi-channel ultrasonic instrumentation, and sophisticated motion and data collection software • Fully automated part inspection, including set-ups, data acquisition, data analysis, and reporting capabilities • Real-time C-scan and B-scan imaging • Advanced software, including features such as automatic Stop on Defect, statistical evaluation of C-scan images, customized inspection reports, true B-scans, and more
Longitudinal SAW Inspection Systems The AS-200L Systems inspect Longitudinal Submerged Arc Welded Pipes(L-SAW), including the plate before pipe forming, weld, Heat Affected Zone (HAZ) and pipe end. The systems can be integrated with various ultrasonic configurations, according to inspection requirements and site conditions. Both static and moving inspection head configurations are available for the offline pipes inspection, to accommodate different site conditions and throughput requirements.
ScanMaster Longitudinal SAW Ultrasonic Inspection Systems
Adherence to common industry standards: • API  5L/ISO 3183 • Shell DEP-31.40.20.37-Gen. • DNV-OS-F101 •Other pipeline requirements Features and Benefits • Modular inspection heads supporting different ultrasonic configurations • The system can be easily upgraded to comply with new ultrasonic requirement • Ease of operation for quick setup and calibration • On-site operator console • Automatic seam following by laser or pilot line • Automated custom tailored inspection report • Robust  - vibration free mechanical structure •Unique ultrasonic transducers with internal coupling verification • RFI shielding and ultrasonic instrument layout specifically designed for enhanced SNR • Low maintenance and long lifespan • Optional implementation of Phased Array technology.
ScanMaster Ultrasonic Inspection Systems Brochure Button REQUEST QUOTE Request Quote Button SHOP
Products & specifications subject to change without notice.                            E. & O.E.
Advanced NDT Limited Unit 4, Elgar Business Centre Moseley Road Hallow, Worcester WR2 6NJ, UK TEL: 44 (0) 1905 371 460
ScanMaster a World leading supplier of Automated Ultrasonic Inspection Systems serving a wide range of industries to ensure quality and improve productivity. Advanced Solutions for the Ultrasonic Inspection World.
PRODUCTS
Standard Immersion Systems ScanMaster ultrasonic immersion systems are designed for high throughput, multi shift operation in an industrial or lab environment. These fully integrated systems provide various scanning configurations and incorporate conventional and phased arrays technologies to support diverse applications, such as inspection of disks, bars, shafts, billets and plates. All of ScanMaster immersion systems are built from high accuracy scanning frames allowing for scanning of complex parts and include a multi-channel ultrasonic instrument with exceptional performance. The systems are approved by all major manufacturers for C-scan inspection of jet engine forged discs. Together with a comprehensive set of software modules these flexible series of systems provide the customer with the best price performance solutions.
Features and Benefits • Wide variety of different size modular systems • Powerful teach-in and scanning software allowing for inspection of complex 3D parts. • Off-line part programming by importing the part model from CAD file • A, B and C-scan data processing and analysis tool kit. Includes a reach library of tools for analysis and evaluation of scan results • 1000 Gates, advanced algorithm for automatic evaluation of jet engine discs scan results • Comprehensive inspection report, standard and customized versions • High-resolution, gimbal-gimbal probe manipulator with protective electro-mechanical breakaway, which prevents damage to manipulator, transducers and part under inspection in case of collision • High-performance turntable with self-centering chucks • Automation of major functions provides time savings and prevents operator errors Options • Continuous motion or two-position motorized lifting device for easy loading and unloading Motorized chucking for quick part clamping • Application-tailored multi-transducer probe holder • Interface to loading/unloading industrial robot for fully automated inspection • Transportable version with quick installation and ready for operation (SKAN200,   SKAN500 Series)
Bearing Inspection ScanMaster has enhanced and adapted its line of immersion scanners to meet the stringent inspection requirements set by the bearing industry. ScanMaster immersion scanners service the full range of industrial bearing rings, from those used in high-speed trains to those integrated in windmills. These fully integrated, high throughput automated inspection systems provide the best bearing inspection solution, both performance- and productivity-wise.
Features and Benefits • Rugged immersion tanks with high-precision mechanics • Chucking and centering of the rings • Fast two-position lifting device (operated from the HMI screen) for easy loading and unloading of bearings•Motorized turntable chucks for automated • Provision for interfacing with a loading-unloading robot • Multi-transducer probe holder for increased inspection throughput • Fully automated inspection process requiring no operator intervention maximizes efficiency and helps prevent operator errors • Efficient "Teach-In" function for programming of spherical and ball bearings • Off-line part programming through importing part models from CAD files • A, B, and C-scan data analysis tool kit, including a tool library for analysis and evaluation of scan results • 3D display of bearing model and scanning robot • Comprehensive inspection reports with standard and customized versions
Billets and Bars Inspection Systems ScanMaster offers a variety of immersion scanners for inspection of round and square bars and billets, as well as tubes and shafts intended for use in aerospace, steel and other industries. Both conventional and phased array transducers are incorporated in such scanners. System configuration is depending on the geometry and size of products to be inspected, as well as on the applicable standards and specifications of requirements. Custom design assures full system compliance with specific geometrical parameters and inspection requirements.
Features and Benefits • Modular configuration, both hardware- and software-wise • Adherence to major aerospace and steel standards: AMS 2628, P3TF31, DMC 0022, SIM-16, RPS 707, ASTM E-588, SEP 1927 and others • Rugged immersion tanks with high-precision mechanics and integrated water circulation system • Universal inspection head permits multi-zone or conventional inspection, as applicable • Customized multi-transducer holder for simultaneous inspection using longitudinal and shear waves • Quick exchange between phased arrays and conventional transducers • Mechanical surface follower • Multi-channel programmable ultrasonic instrument with exceptional performance • Helical (spiral) scan mode used for inspection of round bars and billets significantly increases inspection throughput • A, B and C-scan data processing and analysis tool kit. Includes a reach library of tools for analysis and evaluation of scan results • Comprehensive inspection report, standard and customized versions in accordance with applicable aerospace and steel standards: ASTM E-588, SEP 1927 and others • Automation of major functions provides time savings and prevents operator errors
Plate Inspection Rolled aluminium and titanium plates intended for aerospace applications are inspected in accordance with stringent industry standards. The large size of the plates and their wide thickness range demand high inspection productivity. Defect evaluation and comprehensive inspection reports are common requirements. ScanMaster offers a variety of field proven, high throughput plate inspection systems designed to provide a complete solution for material testing and handling. ScanMaster systems use either phased array or conventional transducers for defect detection, and include advanced features for plate scanning, data acquisition, defect evaluation and reporting.
Features and Benefits • ‘One stop shop’ providing fully integrated, high throughput automated inspection systems. • To provide a comprehensive inspection solution, systems may include material handling devices such as lifting platforms and rolling tables in addition to the immersion tank and scanning robot. • Full communication with plant computer for material handling, transfer of material information and test requirements, and handover of inspection results. • Advanced, unique features assure accurate scanning, reliable data acquisition and automated defect evaluation, as well as high inspection throughput. • Automated DAC calibration to reduce pre-scanning time. • Non-contact surface tracking to ensure perpendicularity of the ultrasonic beam on the plate surface. • Automated defect evaluation procedure complying with applicable standards. • Compliance with major standards, such as AMS STD 2154, ASTM B 594, ASTM E 2375, BSS 7055 and ABP-6-5232
Customized Systems In addition to its extensive range of standard immersion systems, ScanMaster provides customized inspection solutions to meet customer's specific requirements. Such systems are specially designed by our in-house engineering team and are integrated with ScanMaster core modules (digital ultrasonic instrumentation, production-oriented software packages and servo motion control hardware) to provide a fully integrated solution tailored to the customer's needs. Customized systems utilize conventional or phased array ultrasonic techniques to provide immersion or squirter inspection. Additional modules such as turntables, bar-rotator, yokes, and other standard or specially designed accessories may also be integrated.
Features and Benefits • Customized architecture to match parts geometry and inspection requirements • Specifically tailored robust and precise mechanics • Phased array or multi-channel conventional scanning technology • Supply or integration of material handling devices, such as industrial robots •Implementation of industry proven software tools

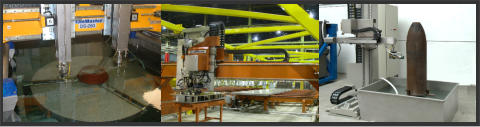

Squirter based Inspection systems The extensive use of composite materials in manufacturing of aerospace and naval parts and structures is dictating an increasing need for adequate, reliable, high throughput inspection systems. Structural parts can be scanned using various configurations of squirter systems, in both pulse-echo and thru-transmission modes. ScanMaster offers all possible scanning configurations, including overhead gantry with travelling bridges, dual scanning towers, flatbed scanners, and systems based on industrial robots. ScanMaster squirter systems are designed to inspect a wide range of aerospace structures, from flat panels to complex curvature parts. Both conventional, high penetration UT and phased array technologies are available.
