Ultrasonic Thickness Gauges A Range of Instruments used for Ultrasonic Thickness Gauging Applications
Ultrasonic Thickness Gauges allowing you to measure from one side only, ideal for many material wall thickness testing applications. From Simple Fixed Velocity Ultrasonic Thickness Testers to High Speed On-line Precision Ultrasonic Thickness Gauging.
Nova TG110-DL The Nova TG110-DL Digital Ultrasonic Thickness Gauge. A Simple robust, general purpose thickness tester with amazing features and performance for many applications.
SIUI CTS-30A & CTS-30B The SIUI CTS-30A & CTS-30B Ultrasonic Thickness Gauge.  Compact size, lightweight, low consumption and long operation period.
Dakota MX-1 The Dakota MX-1 a basic fixed velocity ultrasonic thickness gauge.
Nova TG210 & Nova TG410 The Nova TG210 & Nova TG410 Ultrasonic Thickness Gauges with A- Trace Display for applications requiring the operator to verify the readings taken.
CB110 - Sidewinder Automotive Inspection with the CB110 Sidewinder. Applications include Cylinder Bore Inspection, Head Porting, Chassis & Body Members & more.

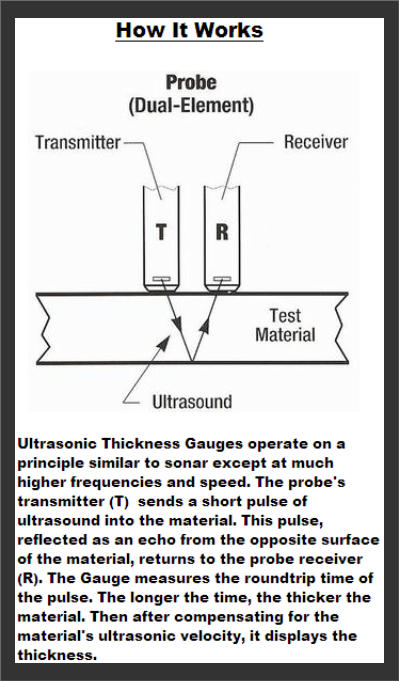

Ultrasonic thickness measurement (UTM) is a method of performing non-destructive measurement (gauging) of the local thickness of a solid element (typically made of metal, if using ultrasound testing for industrial purposes) basing on the time taken by the ultrasound wave to return to the surface. This type of measurement is typically performed with an ultrasonic thickness gauge. Advantages - Non-destructive technique - Does not require access to both sides of the sample - Can be engineered to cope with coatings, linings, etc. - Good accuracy (0.1 mm and less) can be achieved using standard timing techniques - Can be easily deployed, does not require laboratory conditions
Home > Products > Ultrasonic Thickness Gauges
NovaScope 6000 The NovaScope series of Precision Thickness Gauges have remained the worlds finest available for over 35 years! That is set to continue well into the future with the NovaScope 6000.
new! Dakota MX-1 The Dakota MX-1 is a basic Ultrasonic Thickness Gauge. The MX-1 will hold a single velocity, making it the perfect choice for applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn it on and go to work. Nova TG110-DL A Simple to use, Hand-held, robust, general purpose Ultrasonic Thickness Gauge.  •	Class leading performance for the price  •	Auto Probe Recognition  •	Time encoded B-scan   •	USB, data logging, alarm modes Nova TG900 Series Nova TG 900 Series - Hand Held & Bench Top, Simple to use, Precision Ultrasonic Thickness Gauges     Features Include:      • High-Resolution (0.0001in, 0.0025mm)      • Auto probe recognition      • Optional Data Logger      • B-Scan Display  Models Available: TG 900, TG 910, TG 930 & TG 950 Nova TG210 & Nova TG410 Nova TG 210 & Nova TG 410 - A  range of Ultrasonic Thickness Gauges with a high resolution A-Scan display to  verify the thickness reading.          Features include:     • High-Resolution (0.0001in, 0.0025mm)    • Single or dual element    • Split-screen, A-trace    • Encoded B-scan    • USB, data logging, alarm modes NovaScope 6000 NovaScope 6000 - Precision Ultrasonic Thickness Gauge.  Applications include Turbine Blades, Wax Castings, Tubing & Many More...    Features include:      • New bright, High speed, High Contrast TFT Display (TouchScreen)     • Thickness Resolution as low as 0.010” (0.254mm)      • Now Battery & AC powered      • Class leading ultra thin spatial resolution CB110 CB110 Sonic Thickness Gauge - Designed Specifically for AUTOMOTIVE Inspection. Applications  include: Cylinder Bore Inspection, Head Porting, Chassis & Body Members, Roll  Cage Thickness Inspection and More...    Features include:      • Cylinder bore wall thickness       • Data logging, results mapping, Scrolling scan view       • Special probes and fixtures       • USB, data logging, alarm modes new! SIUI CTS 30 A&B The SIUI CTS-30A & CTS-30B Ultrasonic Thickness Gauge. Compact size, lightweight, low consumption and long operation period. The CTS-30A / CTS-30B Ultrasonic Thickness Gauge, can do measurement of thickness and acoustic velocity on metal and many materials based on ultrasound measurement principle.
Nova TG900 Series The Nova TG 900 Series - Digital Precision Ultrasonic Thickness Gauge. Available in hand-held or bench top versions suitable for precision measurement applications.
Product Range
Ultrasonic Thickness Gauges A Range of Instruments used for Ultrasonic Thickness Gauging Applications
Ultrasonic Thickness Gauges allowing you to measure from one side only, ideal for many material wall thickness testing applications. From Simple Fixed Velocity Ultrasonic Thickness Testers to High Speed On- line Precision Ultrasonic Thickness Gauging.
Ultrasonic thickness measurement (UTM) is a method of performing non- destructive measurement (gauging) of the local thickness of a solid element (typically made of metal, if using ultrasound testing for industrial purposes) basing on the time taken by the ultrasound wave to return to the surface. This type of measurement is typically performed with an ultrasonic thickness gauge. Advantages - Non-destructive technique - Does not require access to both sides of the sample - Can be engineered to cope with coatings, linings, etc. - Good accuracy (0.1 mm and less) can be achieved using standard timing techniques - Can be easily deployed, does not require laboratory conditions
Products Products Home Home Contact Contact
NovaScope 6000
Product Range Ultrasonic Thickness Gauges TG210 & TG410 Nova 900 Series Nova TG110-DL Dakota MX-1 CB110 Sidewinder Brochures Brochures SIUI CTS-30 A&B Nova TG110-DL The Nova TG110-DL a Simple to use, Hand-held, robust, general purpose Ultrasonic Thickness Gauge. Features: Class leading performance for the price, Auto Probe Recognition, Time encoded B-scan, USB, data logging, alarm modes. Suitable for many applications including: Corrosion Monitoring, Wall Thickness Measurement, Casting / Moulding Thickness Testing.  Nova TG110-DL Dakota MX-1 The Dakota MX-1 Simple Ultrasonic Thickness Gauge can be pre-programmed for a specific material type using a simple PC program. The MX-1 is an excellent choice for users that measure the same material type all the time, and do not have the need to re-calibrate to different materials on the fly.  Dakota MX-1 SIUI CTS-30A The SIUI CTS-30A & CTS-30B - Ultrasonic Thickness Gauge for basic applications. The CTS-30A / CTS-30B Ultrasonic Thickness Gauge, adopts micro-processor technology and advanced manufacture process design, can do measurement of thickness and acoustic velocity on metal and many materials based on ultrasound measurement principle.  SIUI CTS-30 A&B Nova 900 Series  The Nova TG 900 Series Precision Ultrasonic Thickness Gauges are now available in both hand-held and bench top versions, from 4 key simple to full featured. Some standard features include High Speed Pulse Rep Rate, 0.0001 Resolution to a minimum of 0.0035 (probe & application dependent) Auto-set, B-Scan, 50,000 Point Logger and more  Nova 900 Series Nova TG210 & Nova TG410 The Nova A-Trace Series of Ultrasonic Thickness Gauges define a new standard for performance, features and portability. The Nova A-Trace Series offers Pulse Rep Rates up to 300Hz, with Display Updates of 30Hz. The high speed, fully sunlight readable, backlit display offers Quarter VGA resolution. The resolution of the display will appear to approach analogue!  TG210 & TG410 CB110 Sidewinder Sonic Tester CB110 Sidewinder Sonic Tester, Designed Specifically for AUTOMOTIVE Inspections. Applications include Cylinder Bore Inspection, Head Porting, Chassis & Body Members, Roll Cage Thickness Inspection and More... Measuring the wall thickness of automotive cylinder bores, head ports and other components can be important for quality control.  CB110 Sidewinder NovaScope 6000 new! Nova TG210 & Nova TG410 For over 35 years, the NovaScope series of Precision Thickness Gauges have remained the world’s finest gauges available! Now, that tradition is set to continue into the future. The NovaScope continues to incorporate a full colour touch screen display featuring virtual front panel. Users already familiar with the setup and operation of previous NovaScope models will feel right at home.   NovaScope 6000 new!
