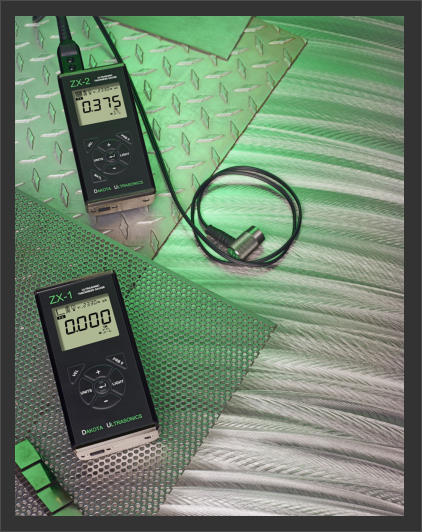

Dakota ZX-1 & ZX-2
Ultrasonic Thickness Gauge Page Button
The Dakota ZX-1 & ZX-2 are basic fixed velocity ultrasonic thickness gauges that require no special training to operate.
The Dakota ZX-1 & ZX-2  basic fixed velocity ultrasonic thickness gauges. Calibration is done by simply scrolling to a known material velocity, or selecting a common material from a list of material types in the ZX-2.  The gauges were designed and built to withstand the roughest industry conditions, are affordable, and backed by a 5 year limited warranty.  If you’re looking for a quality instrument to reliably meet or exceed your application expectations, look no further. Highlights:   • Easy To Operate. • Pulse-echo measurement. • Dual element transducers (1-10MHz options). • 120MHz FPGA timing. • 150 volt square wave pulser. • Low temperature custom LCD display (-22 F / -30 C). • Adjustable material velocity. • Selectable material list (ZX-2 only). • IP65 protection rating. • 5 year limited warranty. Thickness Testing Applications include: • Corrosion & Pitting • Tube & Pipe • Tanks • Boilers • Glass • Variety of Applications Other Ultrasonic Thickness Gauges are also available including our most popular Ultrasonic Thickness Tester the NOVA TG110-DL

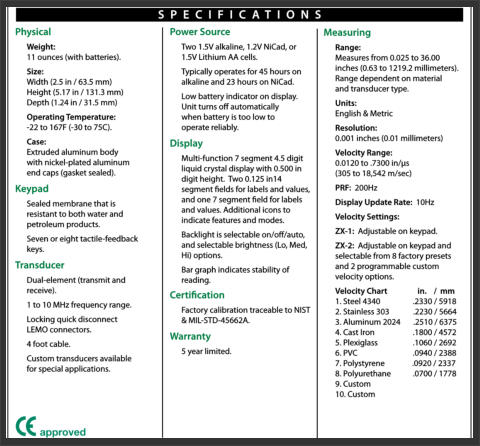

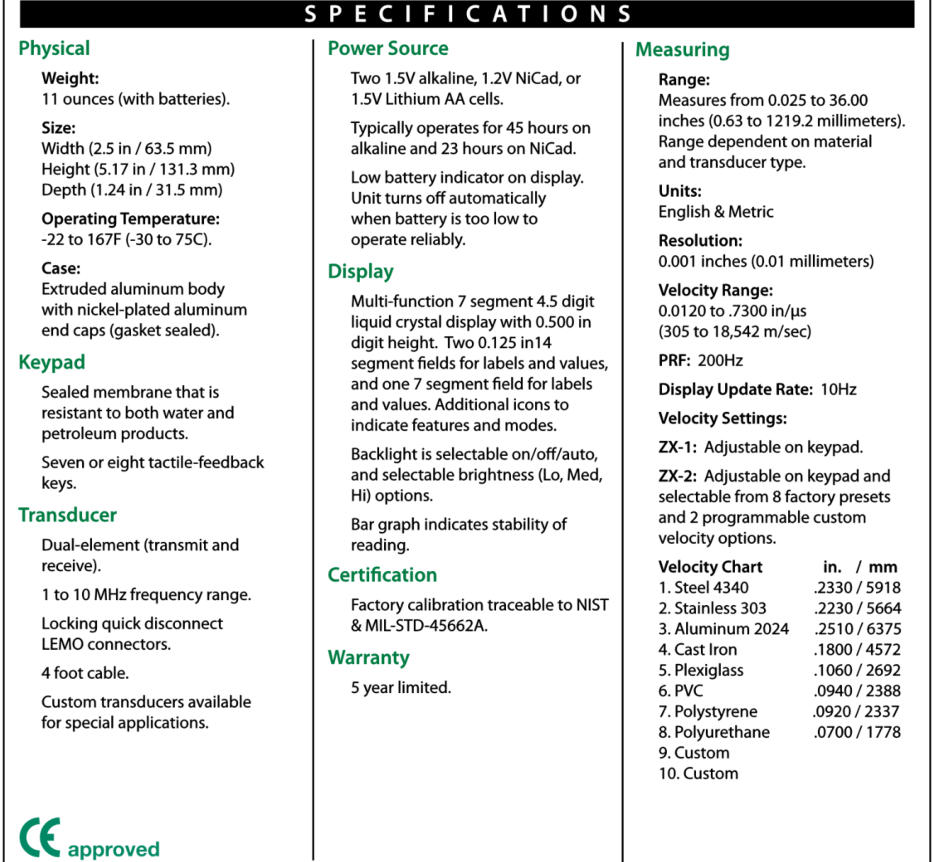

The Dakota ZX-1 & ZX-2 basic fixed velocity ultrasonic thickness gauges Brochure Button The Dakota ZX-1 & ZX-2 basic fixed velocity ultrasonic thickness gauges Dakota ZX-1 & ZX-2 basic fixed velocity Ultrasonic Thickness Tester Technical Specification Table REQUEST QUOTE Request Quote Button SHOP
Products & specifications subject to change without notice.                            E. & O.E.
Advanced NDT Limited Unit 4, Elgar Business Centre Moseley Road Hallow, Worcester WR2 6NJ, UK TEL: 44 (0) 1905 371 460
ULTRASONIC THICKNESS GAUGES
The Dakota ZX-1 & ZX-2 are basic fixed velocity ultrasonic thickness gauges that require no special training to operate.
The Dakota ZX-1 & ZX-2  basic fixed velocity ultrasonic thickness gauges. Calibration is done by simply scrolling to a known material velocity, or selecting a common material from a list of material types in the ZX-2.  The gauges were designed and built to withstand the roughest industry conditions, are affordable, and backed by a 5 year limited warranty.  If you’re looking for a quality instrument to reliably meet or exceed your application expectations, look no further. Highlights:   • Easy To Operate. • Pulse-echo measurement. • Dual element transducers (1-10MHz options). • 120MHz FPGA timing. • 150 volt square wave pulser. • Low temperature custom LCD display (-22 F / -30 C). • Adjustable material velocity. • Selectable material list (ZX-2 only). • IP65 protection rating. • 5 year limited warranty. Thickness Testing Applications include: • Corrosion & Pitting • Tube & Pipe • Tanks • Boilers • Glass • Variety of Applications Other Ultrasonic Thickness Gauges are also available including our most popular Ultrasonic Thickness Tester the NOVA TG110-DL
Brochure BROCHURES PRODUCTS
Dakota ZX-1 & ZX-2
