Products & specifications subject to change without notice. E. & O.E.
Advanced NDT Limited
Unit 4, Elgar Business Centre
Moseley Road
Hallow, Worcester
WR2 6NJ, UK
TEL: 44 (0) 1905 371 460
A wide range of professional UV Lights & UV Torches using the latest in
UV LED Technology. These UV LED inspection lights offer many
advantages over other UV Lighting methods. From small pocket sized
UV LED torches through to large beam hand held UV lights and
overhead UV LED arrays.
LED (Light Emitting Diodes)
These UV Lights & Torches use the latest in UV LED technology. These
type of lights are usually more compact and lighter weight than the
previous gas discharge bulb lights. Making them ideal for harder to
access areas or areas where a beam can be projected down tight
spaces etc. The LED’s also offer a much greater life expectancy, more
uniform beams, low visible light outputs, little heat generation, instant
on/off and No UV-B emissions.
The Labino GX Orion Modular overhead LED UV System that allows you to
design the desired covered area by mounting together multiple units.
There are three different models to choose from, remote controlled with
multiple UV intensities, UV on/off button only, and UV and Visible (white) light
on/off buttons only.

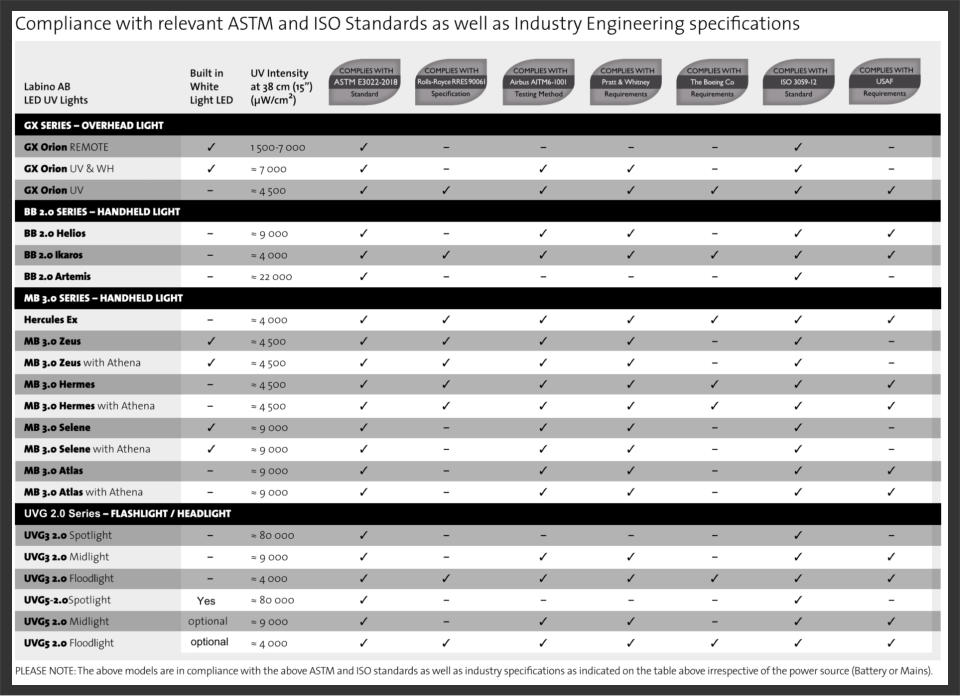

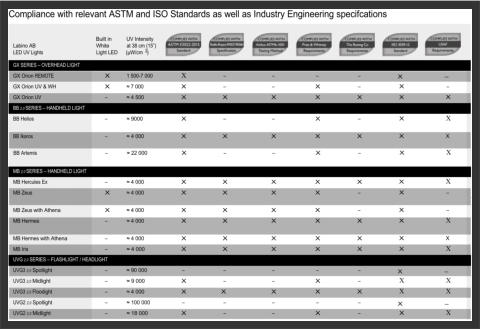

Models available to meet ASTM E3022-2018, Rolls-Royce RRES 90061 &
Airbus AITM6-1001 etc.
Labino UV LED Light - Mounted overhead - LED
Type: GX Orion Mains Powered
Weight: 2.6kg (5.8 lbs)
Modular Design: Overhead UV system that allows you to design the desired
covered area by mounting together multiple units.
Additional Features available: Remote, Dimmer and Timer
The Labino MB 3.0 Series - Zeus, Hermes, Selene, Atlas and Hercules Ex are
UV LED lights. Compact, robust and IP68 Waterproof. Mains or Battery
powered. Models available to meet ASTM E3022-2018, Rolls-Royce RRES
90061 & Airbus AITM6-1001. They are compact and weigh less than many
comparable products but are extremely robust in nature, designed for heavy
industries with very difficult operating environments. Estimated LED Life time
of 30,000 hours with an ingress protection marking of IP68 Waterproof.
Proving to be our most popular UV lights yet.
Labino UV LED Hand Held Lamp - LED
Available as ZEUS, HERMES, SELENE, ATLAS & HERCULES Ex
Type: MidBeam 3.0 (MB)
Power Source: Mains or Battery
Weight: 732g - 781g depending on version
Operating Time: Battery versions = up to 3 hours approx (continuous use)
depending on version, four batteries supplied, Only two required to operate.
The Labino Nano UV 375 an extremely compact UV LED torch.
Operating at a peak of 375nm it is more suited for basic UV applications.
Labino UV LED Torch - Hand-Held - LED
Available as Spotlight
Type: Nano UV 375
Battery Powered
Weight: 114 grams including battery
Operating Time: 30 minutes approx per battery (continuous use), two
supplied, one required to operate.
UV LED Lights & Torches
The VISION 365 is a robust rechargeable pocket sized UV LED
torch.
Ideal for wide variety of applications.
UV LED Torch - Hand-Held - LED
Available as Spotlight
Type: VISION 365 (UV365)
Battery Powered
Weight: 190 grams including battery
Operating Time: 3 hours approx per battery (continuous use),
two supplied, one required to operate.
The Labino UVG2 2.0 UV LED Rechargeable UV LED torches.
Small, light and powerful. Designed for quick inspections and
hard to reach areas.
Models include: UVG2 2.0 MID & UVG2 2.0 SPOT
Labino UV LED Torch - Hand-Held - LED
Available as Midlight or Spotlight
Type: UVG2 2.0
Battery Powered
Weight: 211 grams including battery
Operating Time: 4 hours approx per battery (continuous use),
two supplied, one required to operate.
The Labino UVG3 2.0 UV LED Rechargeable UV LED torches. Small,
light and powerful. Designed for quick inspections and hard to
reach areas.
Models include: UVG3-FLOOD, UVG3-MID & UVG3-SPOT
Models available to meet ASTM E3022-2018 & Rolls-Royce RRES
90061.
Labino UV LED Torch - Hand-Held - LED
Available as Floodlight, Midlight or Spotlight
Type: UVG3 2.0
Battery Powered
Weight: 211 grams including battery
Operating Time: 4 hours - FLOOD & SPOT & 8 Hours - MID approx
times per battery (continuous use), two supplied, one required to
operate.
The Labino UVG5-HEAD UV LED Rechargeable UV LED Head
torches. Small, light and powerful. Designed for hands free quick
inspections and hard to reach areas.
Models include: UVG5 2.0 - FLOOD,MID or SPOT
Models available to meet ASTM E3022-2018, Rolls-Royce RRES
90061 & Airbus AITM6-1001 etc.
Labino UV LED Torch - Head-Mounted - LED
Available as Floodlight, Midlight or Spotlight
Type: UVG5-HEAD
Battery Powered
Weight: 271 grams including battery
Operating Time: 8 hours approx
The Labino BB 2.0 Series products Helios, Ikaros & Artemis are UV LED lights
with a powerful and wide UV Output. They provide large coverage and weigh
less than many comparable products. They are widely used for field
inspections, on an MPI bench or penetrant line.
Models available to meet ASTM E3022-2018, Rolls-Royce RRES 90061 &
Airbus AITM6-1001 etc.
Labino UV LED Light - Hand-Held - LED
Available as BB Helios or BB Ikaros (Also available in the Cable Winder style)
Power Source: Mains or Battery
Weight: 1.2kg - 1.7kg depending on version
Operating Time: Battery versions = 5 hours (Artemis), 6 hours (Helios) & 7
hours (Ikaros) approx
