The Labino SuperXenon 35W & The super powerful Labino SuperXenon 50W UV
lights. If UV intensity is what you need then look no further.
Ultraviolet Lights & Torches
Ultraviolet Lights / Lamps & UV LED Blacklight Torches / Flashlights - For many applications including: Non-Destructive Testing
(NDT) such as Magnetic Particle Inspection (MPI) and Dye Penetrant Testing (DPI), Leak Testing, Purity Control, DNA Based
Tracer Liquids (e.g. SmartWaterTM Detection), Sanitation, Crime Scene Investigation, Forensic work, Hotel Inspections, Art
verification and restoration and many many many more

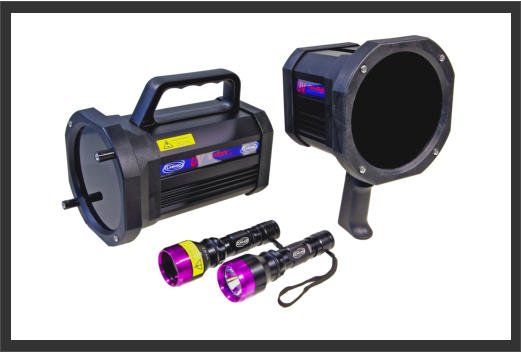

The Labino Standard MPXL 35W UV Inspection Lights (135 Series & TrAc Series)
used for many applications including NDT inspections, Leak Testing, Crime Scene
Investigation (forensics) and many many more.
Mains Models: Compact (135, H135, PH135) - Duo (S135, PS135)
Battery Models: TrAc Light (H135TL, PH135TL) - TrAc Light Pro (PS135TLP)
The Labino GX Orion Modular professional overhead LED UV System that allows
you to design the desired covered area by mounting together multiple units.
There are three different models to choose from, remote controlled with multiple
UV intensities, UV on/off button only, and UV and Visible (white) light on/off
buttons only. Models available to meet ASTM E3022-2018, Rolls-Royce RRES 90061
& Airbus AITM6-1001 etc.
The Labino BB 2.0 Series products Helios, Ikaros & Artemis are UV LED lights with
a powerful and wide UV Output. They provide large coverage and weigh less than
many comparable products. They are widely used for field inspections, on an
MPI bench or penetrant line. Models available to meet ASTM E3022-2018, Rolls-
Royce RRES 90061 & Airbus AITM6-1001 etc.
The Labino MB 3.0 Series - Zeus, Hermes Selene and Atlas are UV LED lights. Compact,
robust and IP68 Waterproof. Mains or Battery powered. Models available to meet ASTM
E3022-2018, Rolls-Royce RRES 90061 & Airbus AITM6-1001
They are compact and weigh less than many comparable products but are extremely
robust in nature, designed for heavy industries with very difficult operating
environments. Estimated LED Life time of 30,000 hours with an ingress protection
marking of IP68 Waterproof. Proving to be our most popular UV lights yet.
Also available the MB Hercules EX, MB Iris & MB Poseidon
The Labino Nano UV 375 an extremely compact UV LED torch.
Operating at a peak of 375nm it is more suited for basic UV applications such as
document checking.
The VISION 365 is a robust rechargeable pocket sized UV LED Inspection
Blacklight torch.
Ideal for wide variety of applications.
The Labino UV LED Rechargeable UV LED torches & Head Lights. Small, light and
powerful. Designed for quick inspections and hard to reach areas.
Models include: UVG2, UVG3 & UVG5-HEAD.
Models available to meet ASTM, E3022-2018 & Roll-Royce RRES 90061.
The Labino Apollo 2.0 UV & Visible Light Meter for accurate measurement of UV-
A Radiation and white light emissions. Small enough to to fit in a pocket.
Wireless Sensor allows measurements up to 5 metres away and ensures the
unit is stable with no movement from connecting cables during measurement.
NIST, SP & ISO 3059
UV (Ultra-Violet) Eye & Face Protection - UV Eye protection with 99% filtration up
to 385nm. We offer both the Labino UV Blocking face shield S400 for full eye &
Face protection and simple safety glasses style glasses S505 XC.
UV-A Light radiation is dangerous and can cause harm!
The Labino LabinOil , complete engine leak detection test kit. Includes
Fluorescent dye and high intensity Labino UV LED Torch.
For use with petroleum based lubricants, you do not need to clean the engine
before or after use, nor do you have to empty the engine of oil. No training
required.
The Labino DUV-35W (F101) for use in all 35W Labino MPXL UV Lights.
Labino Spares and accessories. Including replacement parts, additional add-ons
and mounting stands etc.
The TrAc Finder Crime Kit, The Nova LED Torch Lights & The New MB Aris Kit -
Forensic Alternative light sources / Alternate Light Sources (ALS) are invaluable
for detecting substances (forensic trace) at a crime scene such as: body fluids
(semen, urine, saliva, vaginal fluids, blood, sweat etc.), bruising, hair, fibres, foot prints, fingerprints,
Ninhydrine (treated fingerprints), Super glue (treated fingerprints), Fluorescent dyes, powders,
stamps, markers, basic yellow 40, Cyanoacrylate, (SmartWater TM) and general searching.
The Labino White Lights & Torches. The Labino white lamps have a unique white
luminance, which makes it possible to see things that have not been possible
before.
Ideal for Forensic / Crime Scene Applications.
UV Inspection Lights are used in Non-Destructive Testing (NDT) for fluorescing fluorescent magnetic inks and fluorescent dye penetrants. UV
light or black light with a wavelength of 365nm creates the optimal viewing conditions.
We have a very wide range of UV Lights to choose from such as Bulb or LED technology, mains operated, portable battery operated,
combinations of both, hand-held, bench mounted, in varying cases and intensities etc. All offer instant or near instant start up times, with no pre
cooling etc. Can be switched off and back on instantly. All operate with no external fans making them lighter and quieter, very useful in damp or
dusty environments and require less maintenance. They will still stay cool to the touch, especially useful in confined spaces. None of our lamps
are affected by magnetic fields. The battery models are fitted with current regulators to keep intensities stable when the battery power fades.
Our UV Lights are divided in to two main categories defining the light source technology the Lights are based on. Standard MPXL 35w &
SuperXenon MPXL 35w & 50w (Gas Discharge Bulbs) or LED (Light Emitting Diodes).
&
Standard MPXL & SuperXenon MPXL
(Gas Discharge Bulbs)
These UV Lights use the gas discharge bulbs (Standard MPXL 35w or SuperXenon MPXL 35w & 50w) a similar technology to that of modern car
headlights. These types of UV Light typically give much higher intensities giving them the ability to spread that light over a larger beam area, or to
be focused over a longer distance or even in brighter conditions such as daylight.
Making them more suited to applications requiring the following attributes:-
• Large beam coverage area.
• Illumination from a greater distance.
• Illumination in brighter conditions e.g. daylight.
• Combinations of the above.
LED (Light Emitting Diodes)
These UV Lights & Torches use the latest in LED technology. These type of lights are usually more compact and lighter weight than the previous
gas discharge bulb lights. Making them ideal for harder to access areas or areas where a beam can be projected down tight spaces etc. The LED’s
also offer a much greater life expectancy, a more uniform beam and No UV-B emissions.
Choosing which type of UV light is right for you?
Many factors will affect the best choice of UV Light for your application. To help narrow down the options for you here are a few questions to
think about while choosing the light you require.
• Do you require it to be portable (battery operated) or mains powered only?
• Is the size of the lamp critical? (Access or weight issues may limit you to torch size lights.)
• Will you be able to darken the area or will it it be daylight?
• Do you need to illuminate the inspection area from a distance?
• Do you need to cover large areas quickly?
• Do you have specifications or standards to meet? (e.g. Visible light output limits, intensity outputs minimum or maximum, Specific Wavelength
requirements etc.)
• The budget - Obviously the wide range of UV lights covered will vary a lot in price, from the basic UV LED torch through to the high intensity
portable gas discharge bulb lights.
There are many other things to consider but if you need any assistance in your choice then please do not hesitate to contact us for further help.

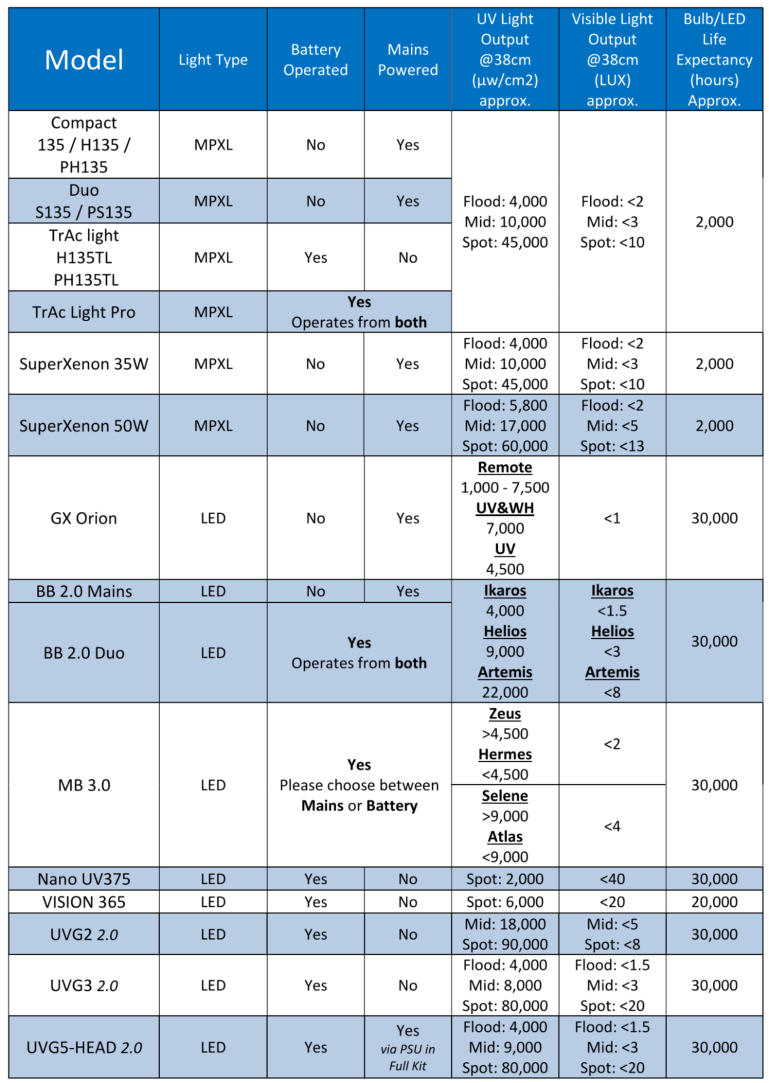

Below is a comparison chart highlighting a few of the basic factors when choosing a UV light which may assist you in narrowing down your
choices.
Possible Applications
Applications include: Non Destructive Testing (N.D.T.), Magnetic Particle Inspection (M.P.I.), Dye Penetrant Inspection (D.P.I.), Leak Detection,
Engine Leak Detection, UV Curing, Sanitation, Purity Control, Art Restoration, Art Verification, DNA Based water detection e.g.. SmartWater,
Theatrical Stage Lighting, Pre Paint cleanliness checking, Forensic work and Crime Scene Investigations. Animal Urine monitoring and detection,
Search & Rescue operations and many many more.
Products & specifications subject to change without notice. E. & O.E.
Advanced NDT Limited
Unit 4, Elgar Business Centre
Moseley Road
Hallow, Worcester
WR2 6NJ, UK
TEL: 44 (0) 1905 371 460
EMAIL: sales@advanced-ndt.co.uk
The Labino SuperXenon 35w MPXL & The super powerful
Labino SuperXenon 50W MPXL UV lights. If UV intensity is
what you need then look no further.
Ultraviolet Lights / Lamps & UV LED Blacklight Torches / Flashlights - For
many applications including: Non-Destructive Testing (NDT) such as
Magnetic Particle Inspection (MPI) and Dye Penetrant Testing (DPI),
Leak Testing, Purity Control, DNA Based Tracer Liquids (e.g.
SmartWaterTM Detection), Sanitation, Crime Scene Investigation,
Forensic work, Hotel Inspections, Art verification and restoration and
many many many more
The Labino Standard MPXL 35W UV Lights (135 Series &
TrAc Series) used for many applications including NDT
inspections, Leak Testing, Crime Scene Investigation
(forensics) and many many more.
Mains Models:
Compact (135, H135, PH135) - Duo (S135, PS135)
Battery Models:
TrAc Light (H135TL, PH135TL) - TrAc Light Pro (PS135TLP)
The Labino GX Orion Modular overhead LED UV System
that allows you to design the desired covered area by
mounting together multiple units.
There are three different models to choose from, remote
controlled with multiple UV intensities, UV on/off button
only, and UV and Visible (white) light on/off buttons only.
Models available to meet ASTM E3022-2018, Rolls-Royce
RRES 90061 & Airbus AITM6-1001 etc.
The Labino BB 2.0 Series products Helios, Ikaros &
Artemis are UV LED lights with a powerful and wide UV
Output. They provide large coverage and weigh less than
many comparable products. They are widely used for
field inspections, on an MPI bench or penetrant line.
Models available to meet ASTM E3022-2018, Rolls-Royce
RRES 90061 & Airbus AITM6-1001 etc.
The Labino MB 3.0 Series - Zeus, Hermes Selene and Atlas
are UV LED lights. Compact, robust and IP68 Waterproof.
Mains or Battery powered. Models available to meet ASTM
E3022-2018, Rolls-Royce RRES 90061 & Airbus AITM6-1001
They are compact and weigh less than many comparable
products but are extremely robust in nature, designed for
heavy industries with very difficult operating environments.
Estimated LED Life time of 30,000 hours with an ingress
protection marking of IP68 Waterproof. Proving to be our
most popular UV lights yet.
Also available the MB Hercules EX, MB Iris & MB Poseidon
The Labino Nano UV 375 an extremely compact UV LED
torch.
Operating at a peak of 375nm it is more suited for basic
UV applications such as document checking.
The VISION 365 is a robust rechargeable pocket sized
UV LED torch.
Ideal for wide variety of applications.
The Labino UV LED Rechargeable UV LED torches & Head
Lights. Small, light and powerful. Designed for quick
inspections and hard to reach areas.
Models include: UVG2, UVG3 & UVG5-HEAD.
Models available to meet ASTM, E3022-2018 & Rolls-Royce
RRES 90061.
The Labino Apollo 2.0 UV & Visible Light Meter for accurate
measurement of UV-A Radiation and white light emissions.
Small enough to to fit in a pocket. Wireless Sensor allows
measurements up to 5 metres away and ensures the unit
is stable with no movement from connecting cables
during measurement. NIST, SP & ISO 3059
UV (Ultra-Violet) Eye & Face Protection - UV Eye protection
with 99% filtration up to 385nm. We offer both the Labino
UV Blocking face shield S400 for full eye & Face protection
and simple safety glasses style glasses S505 XC.
UV-A Light radiation is dangerous and can cause harm!
The Labino LabinOil , complete engine leak detection test
kit. Includes Fluorescent dye and high intensity Labino UV
LED Torch.
For use with petroleum based lubricants, you do not need
to clean the engine before or after use, nor do you have to
empty the engine of oil. No training required.
The Labino DUV-35W (F101) for use in all 35W Labino
MPXL UV Lights.
Labino Spares and accessories. Including replacement
parts, additional add-ons and mounting stands etc.
The TrAc Finder Crime Kit, The Nova LED Torch Lights &
The New MB Aris Kit - Forensic Alternative light sources /
Alternate Light Sources (ALS) are invaluable for detecting
substances (forensic trace) at a crime scene such as: body
fluids (semen, urine, saliva, vaginal fluids, blood, sweat
etc.), bruising, hair, fibres, foot prints, fingerprints,
Ninhydrine (treated fingerprints), Super glue (treated
fingerprints), Fluorescent dyes, powders, stamps, markers,
basic yellow 40, Cyanoacrylate, (SmartWater TM) and
general searching.
The Labino White Lights & Torches. The Labino white
lamps have a unique white luminance, which makes it
possible to see things that have not been possible before.
Ideal for Forensic / Crime Scene Applications.
UV Inspection Lights are used in Non-Destructive Testing (NDT) for
fluorescing fluorescent magnetic inks and fluorescent dye penetrants.
UV light or black light with a wavelength of 365nm creates the
optimal viewing conditions.
We have a very wide range of UV Lights to choose from such as Bulb or
LED technology, mains operated, portable battery operated,
combinations of both, hand-held, bench mounted, in varying cases and
intensities etc. All offer instant or near instant start up times, with no
pre cooling etc. Can be switched off and back on instantly. All operate
with no external fans making them lighter and quieter, very useful in
damp or dusty environments and require less maintenance. They will
still stay cool to the touch, especially useful in confined spaces. None
of our lamps are affected by magnetic fields. The battery models are
fitted with current regulators to keep intensities stable when the
battery power fades. Our UV Lights are divided in to two main
categories defining the light source technology the Lights are based on.
Standard MPXL 35w & SuperXenon MPXL 35w & 50w (Gas Discharge
Bulbs) or LED (Light Emitting Diodes).
&
Standard MPXL & SuperXenon MPXL
(Gas Discharge Bulbs)
These UV Lights use the gas discharge bulbs (Standard MPXL 35w or
SuperXenon MPXL 35w & 50w) a similar technology to that of modern
car headlights. These types of UV Light typically give much higher
intensities giving them the ability to spread that light over a larger
beam area, or to be focused over a longer distance or even in brighter
conditions such as daylight.
Making them more suited to applications requiring the following
attributes:-
• Large beam coverage area.
• Illumination from a greater distance.
• Illumination in brighter conditions e.g. daylight.
• Combinations of the above.
LED (Light Emitting Diodes)
These UV Lights & Torches use the latest in LED technology. These type
of lights are usually more compact and lighter weight than the
previous gas discharge bulb lights. Making them ideal for harder to
access areas or areas where a beam can be projected down tight
spaces etc. The LED’s also offer a much greater life expectancy, a more
uniform beam and No UV-B emissions.
Choosing which type of UV light is right for you?
Many factors will affect the best choice of UV Light for your application.
To help narrow down the options for you here are a few questions to
think about while choosing the light you require.
• Do you require it to be portable (battery operated) or mains powered
only?
• Is the size of the lamp critical? (Access or weight issues may limit you
to torch size lights.)
• Will you be able to darken the area or will it it be daylight?
• Do you need to illuminate the inspection area from a distance?
• Do you need to cover large areas quickly?
• Do you have specifications or standards to meet? (e.g. Visible light
output limits, intensity outputs minimum or maximum, Specific
Wavelength requirements etc.)
• The budget - Obviously the wide range of UV lights covered will vary a
lot in price, from the basic UV LED torch through to the high intensity
portable gas discharge bulb lights.
There are many other things to consider but if you need any assistance
in your choice then please do not hesitate to contact us for further help.
Below is a comparison chart highlighting a few of the basic factors when
choosing a UV light which may assist you in narrowing down your
choices.
Possible Applications
Applications include: Non Destructive Testing (N.D.T.), Magnetic Particle
Inspection (M.P.I.), Dye Penetrant Inspection (D.P.I.), Leak Detection,
Engine Leak Detection, UV Curing, Sanitation, Purity Control, Art
Restoration, Art Verification, DNA Based water detection e.g..
SmartWater, Theatrical Stage Lighting, Pre Paint cleanliness checking,
Forensic work and Crime Scene Investigations. Animal Urine monitoring
and detection, Search & Rescue operations and many many more.
UV Lights & Torches
UV Lights & Torches
