VISION 365 UV LED
The VISION 365 (UV365) UV LED Torch Light is a High Powered rechargeable UV LED Blacklight Torch used for applications such as NDT Inspection (MPI - Magnetic Particle Inspection & DPI - Dye Penetrant), Crime Scene Investigation, Leak Testing, Detection of SmartWater TM  & Other DNA Based Tracer Liquids, Art Verification & Restoration and many more.

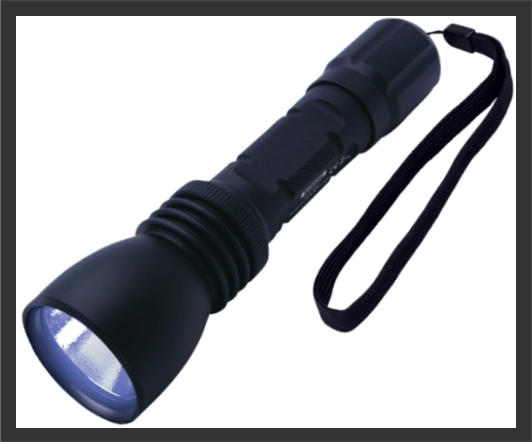

UV Lights Page Button VISION 365 (UV 365) UV LED Torch with Wrist Strap
The Vision 365 (UV365) Blacklight UV Torch from Advanced NDT Ltd offers a light compact, long life, high durability solution to UV inspection techniques. The high powered LED bulb gives intensity greater than 6,000µw/cm² (60W/m2) at 400mm. The visible light output is <20 Lux. The battery life is approximately 3 hours per battery enabling longer inspection periods. The VISION 365 Torch Light - Spotlight is a small-sized, lightweight, UV-A LED flash-light designed for quick inspections and access to “hard-to- reach” spots. The lamp measures 14.5 cm long (5.7 inches) and weighs 190 grams, battery included. The VISION 365 UV LED Torch - Spotlight contains one (1) ultraviolet light emitting diode (LED). The LED creates UV light that peaks at 365 nm making it suitable for industrial, leakage and security applications. Full power is reached instantly. The on/off button is recessed in the back of the lamp to prevent accidental activation. At full charge the batteries provide up to 6 hours of use. Recharge from a normal outlet or vehicle with included chargers. The kit also includes an extra battery, enabling you to charge one whilst using the other.

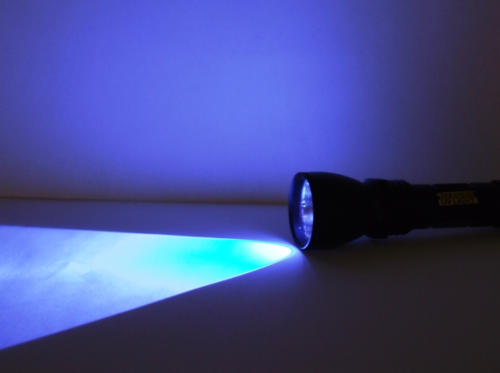

VISION 365 (UV 365) UV LED Torch in action
Specifications • Single 365 nm LED (Peak Wavelength) LED life 20,000 hours on constant • Constructed - CNC machined aerospace-grade aluminium, hard anodized finish extreme corrosion and wear-resistance 0-ring sealed • Crystal lens • Recessed tail cap switching mechanism is designed to prevent unintentional activation of the torch • Water & Shock Resistant • Lightweight • The initial charging of the battery takes 12 hours after this recharging takes approximately 2 hours • 3.7 Volts • 2200 mh • On /off switch momentary (instant start up) • UV source 1 UV-A LED 6 WATT • Wavelength:  365 nm (peak) • Intensity >6,000 µw/cm² (60W/m2)  at 400 mm • Visible Light: <20 Lux • Length 14cm 5.5 inches • Weight 190 grams including battery • Battery life approx 6 hours (3 hours per battery). • Re-charge 2 hours • Can also operate on non-rechargeable CR123a Batteries (not included)
The VISION 365 Kit Consists of: 1 x Vision 365 Blacklight UV torch (UV365) 1 x 240v Charging set 1 x Car charging Lead 1 x Battery + 1 x Spare (Two supplied only one required to operate)
VISION 365 (UV 365) UV LED Torch Contents VISION 365 UV LED Torch Brochure Button
Tripod Part No: A600
The Labino A600 Tripod enables the hands free operation of the LED torches. The legs can be adjusted to free stand on a surface or wrapped around objects to hold the torch in place.
Torch Tripod Stand A600 Accessories
UV Protection Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).  These clear lens spectacles and faceshields offer 99.9% protection against ultraviolet radiation, provide optimum viewing contrast and help reduce fatigue. They are lightweight and fit comfortably.
UV Eye Protection - UV Blocking Glasses REQUEST QUOTE Request Quote Button VISION 365 (UV 365) UV LED Torch Shop Now Button VISION 365 (UV 365) UV LED Torch Shop Now Button SHOP UV Eye Protection - UV Blocking Glasses Shop Now Button
Products & specifications subject to change without notice.                            E. & O.E.
Advanced NDT Limited Unit 4, Elgar Business Centre Moseley Road Hallow, Worcester WR2 6NJ, UK TEL: 44 (0) 1905 371 460
EMAIL: sales@advanced-ndt.co.uk
The VISION 365 (UV365) UV LED Torch Light is a High Powered rechargeable UV LED Blacklight Torch used for applications such as NDT Inspection (MPI - Magnetic Particle Inspection & DPI - Dye Penetrant), Crime Scene Investigation, Leak Testing, Detection of SmartWater TM  & Other DNA Based Tracer Liquids, Art Verification & Restoration and many more.
UV LIGHTS
The Vision 365 (UV365) Blacklight UV Torch from Advanced NDT Ltd offers a light compact, long life, high durability solution to UV inspection techniques. The high powered LED bulb gives intensity greater than 6,000µw/cm² (60W/m2) at 400mm. The visible light output is <20 Lux. The battery life is approximately 3 hours per battery enabling longer inspection periods. The VISION 365 Torch Light - Spotlight is a small-sized, lightweight, UV- A LED flash-light designed for quick inspections and access to “hard-to- reach” spots. The lamp measures 14.5 cm long (5.7 inches) and weighs 190 grams, battery included. The VISION 365 UV LED Torch - Spotlight contains one (1) ultraviolet light emitting diode (LED). The LED creates UV light that peaks at 365 nm making it suitable for industrial, leakage and security applications. Full power is reached instantly. The on/off button is recessed in the back of the lamp to prevent accidental activation. At full charge the batteries provide up to 6 hours of use. Recharge from a normal outlet or vehicle with included chargers. The kit also includes an extra battery, enabling you to charge one whilst using the other.
Specifications • Single 365 nm LED (Peak Wavelength) LED life 20,000 hours on constant • Constructed - CNC machined aerospace-grade aluminium, hard anodized finish extreme corrosion and wear-resistance 0-ring sealed • Crystal lens • Recessed tail cap switching mechanism is designed to prevent unintentional activation of the torch • Water & Shock Resistant • Lightweight • The initial charging of the battery takes 12 hours after this recharging takes approximately 2 hours • 3.7 Volts • 2200 mh • On /off switch momentary (instant start up) • UV source 1 UV-A LED 6 WATT • Wavelength:  365 nm (peak) • Intensity >6,000 µw/cm² (60W/m2)  at 400 mm • Visible Light: <20 Lux • Length 14cm 5.5 inches • Weight 190 grams including battery • Battery life approx 6 hours (3 hours per battery). • Re-charge 2 hours • Can also operate on non-rechargeable CR123a Batteries (not included)
The VISION 365 Kit Consists of: 1 x Vision 365 Blacklight UV torch (UV365) 1 x 240v Charging set 1 x Car charging Lead 1 x Battery + 1 x Spare (Two supplied only one required to operate)
BROCHURES PRODUCTS
VISION 365 (UV365)
Accessories
Tripod Part No: A600
The Labino A600 Tripod enables the hands free operation of the LED torches. The legs can be adjusted to free stand on a surface or wrapped around objects to hold the torch in place.
UV Protection Part No: S505 & S400
The Labino UV Blocking Glasses (S505) and Full Faceshield (S400).  These clear lens spectacles and faceshields offer 99.9% protection against ultraviolet radiation, provide optimum viewing contrast and help reduce fatigue. They are lightweight and fit comfortably.
